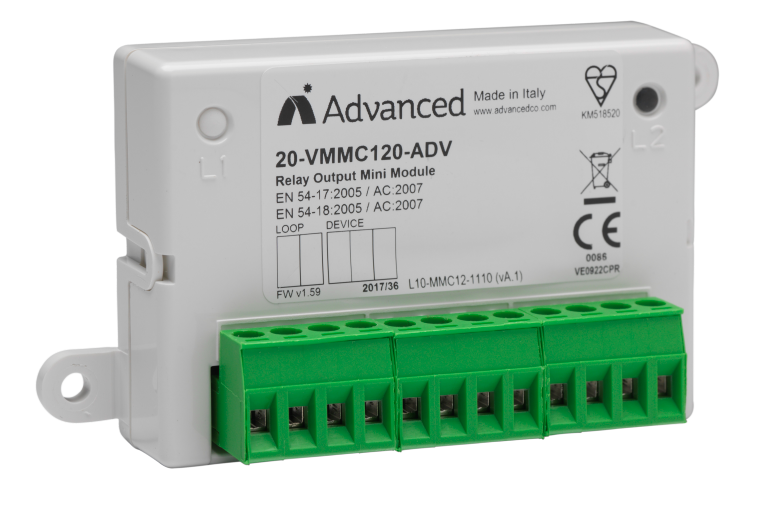

Single Relay Output

• Programmable Form C changeover contact for
auxiliary device control
• Available in wall mount and mini formats
• Auto or manual addressing
• Bi-directional short circuit isolators
• Red/green panel driven LED
• Plug-in connections
• Product code: 20-VMC120-ADV
The Axis single channel output modules are loop powered, designed around a fully digital protocol and provides form C changeover contacts for control of auxiliary devices such as fire shutters. The output channel is a normally de-energised relay switched on by a command from the control panel. The unit provides a fast and secure response, and incorporates a bidirectional short circuit isolator. Connections are made using plug-in terminal blocks which will accept conductors up to 2.5mm ² . The unit can be mounted within an electrical box or enclosure.
