Axis EN is our highest performance EN54 approved panel range and is fully compliant with parts 2, 4 and 13.  It is also certified by FM Approvals to EN54 Parts 2 and 4.

It is the result of decades of fire alarm and detection experience and research and development involving installers, specifiers, consultants and end users across the world.

Axis EN panels have been designed to offer more power and performance in a user-friendly enclosure. Axis EN packs more configuration, display, status and control options into its interface as standard than any other Advanced fire panel, which means less time and expense customising a system with peripherals.

Axis EN’s processing power and advanced component design means it delivers more features, an advantage it will maintain for years to come.

Axis En LogoExample System Diagram

Every Axis EN panel features Advanced’s unbeatable networking capabilities and Dynamix Tools fire panel software making it is easy to use and configure, from the smallest to the largest of sites and with complicated cause-and effect.

  • 1, 2, 4 or 8 loop formats
  • Up to 240 devices per loop
  • Up to 2,000 fire detection zones
  • Up to 200,000 devices per network
  • True peer-to-peer networking
  • Networkable up to 200 nodes
  • Supports intelligent/ programmable remote terminals, BMS interface, IP Gateway and I/O Drivers
  • Built in voltage and current meters
  • Circuit monitoring from any panel or repeater
  • On board or optional remote battery temperature sensor
  • Direct USB and RS232 PC connections
  • Advanced’s simple, select and click programming& configuration
  • Autolearn and Loop Detection
  • Quick start and protect – a working system after an Autolearn is performed
  • Peripheral expansion built in
  • 20 built-in, fully programmable LEDs
  • 4 programmable push buttons
  • 5,000 event log entries
  • Complete device history from each panel
  • 201 programmable false alarm management areas per panel
  • Programmable screen logo
  • Timed enablement of isolated zones, input and output devices
  • Advanced logic delivering huge configuration opportunities
  • Backwards compatible with Mx-4000 range of panels
  • Approved to EN54 Parts 2, 4 and 13
  • Certified by FM Approvals to EN54 Parts 2 and 4



Axis En Logo 1 Loop Panel

Axis En Logo 2 Loop Panel

Axis En Logo 4 Loop Panel

Axis En Logo 8 Loop Panel

Axis En Logo Remote Terminals

Axis En Logo Wired Devices

Axis EN’s loop device range is high performance, easily installed and maintained and offers a range of features and benefits suitable for almost any configuration.

Wired and wireless ranges can be added to the same system, allowing Axis to go as large and as wide as you need it. Detectors come in a range of decorline finishes suitable for any location from sensitive, historic buildings to modern and industrial developments.

Detectors come in fully featured and ‘lite’ ranges allowing Axis to fit financial as well as performance criteria. All devices are ultra-low current, allowing up to 240 devices per loop.

A complete conventional range is also available for use with Axis control panels and interfaces.

Sensors

Sounder & Beacons

Modules

Axis En Logo Wireless Devices

Axis EN’s loop device range is high performance, easily installed and maintained and offers a range of features and benefits suitable for almost any configuration.

Wired and wireless ranges can be added to the same system, allowing Axis to go as large and as wide as you need it. Detectors come in a range of decorline finishes suitable for any location from sensitive, historic buildings to modern and industrial developments.

Detectors come in fully featured and ‘lite’ ranges allowing Axis to fit financial as well as performance criteria. All devices are ultra-low current, allowing up to 240 devices per loop.

A complete conventional range is also available for use with Axis control panels and interfaces.

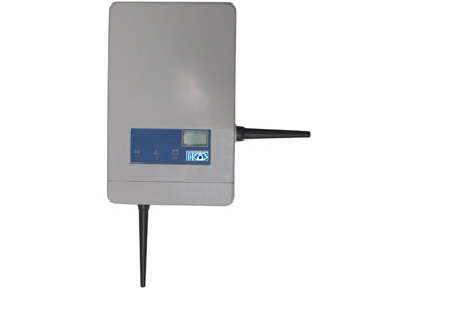

Translator Module

Wireless Detectors

Wireless Sounder
