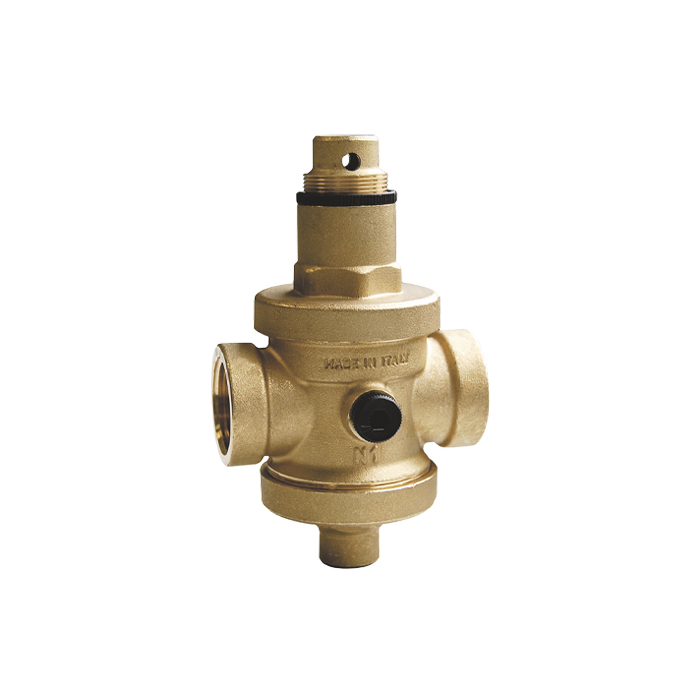

9610DR (Direct-acting DZR brass pressure reducing valve)

Threaded F/F (ISO 228/1)
Max pressure reduction ratio 10:1
Downstream setting press. range from 0,5bar (1,5bar for DN≥32) to 6bar
DZR brass metal parts, stainless steel spring, NBR/Fasit gaskets
Piston type, pressure compensation system
With threaded F (1⁄4” ISO 228/1) pressure gauge connection
Working conditions: Water, 0°C a +80°C; Air, 0°C to +80°C
PN16 when used with air
