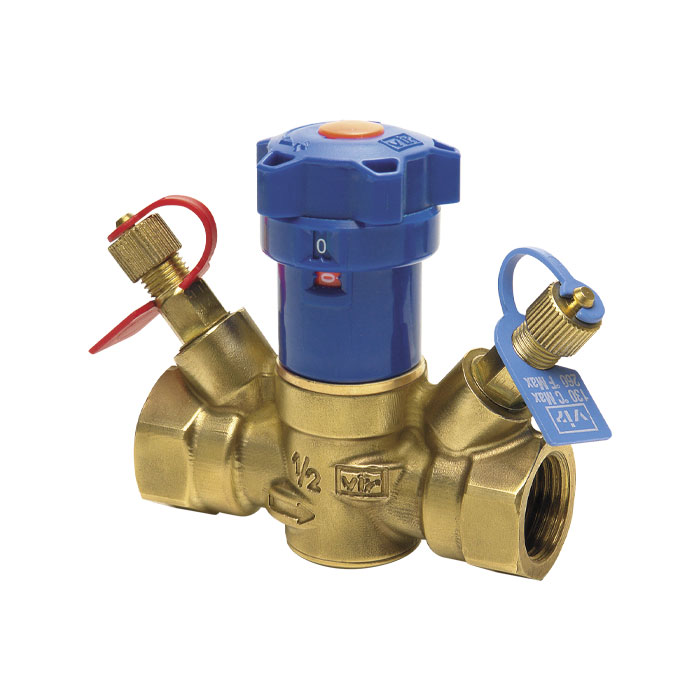

9535 (Variable orifice DZR brass double reg. valve)

Threaded F/F (ISO 228/1 for DN15/20, ISO7/1 Rp above)
Body, inner components and test points in DZR brass
Disc gasket and O-rings in EPDM Perox
ABS handwheel, supplied with allen key for setting
DN15 also in low flow version (L)
Working conditions: Water, -10°C to +130°C
Max 20bar up to 80°C, max 10bar at 130°C
