FEATURED PRODUCTS OF ISMA CONTROLLI

SEE MORE SEE MORE

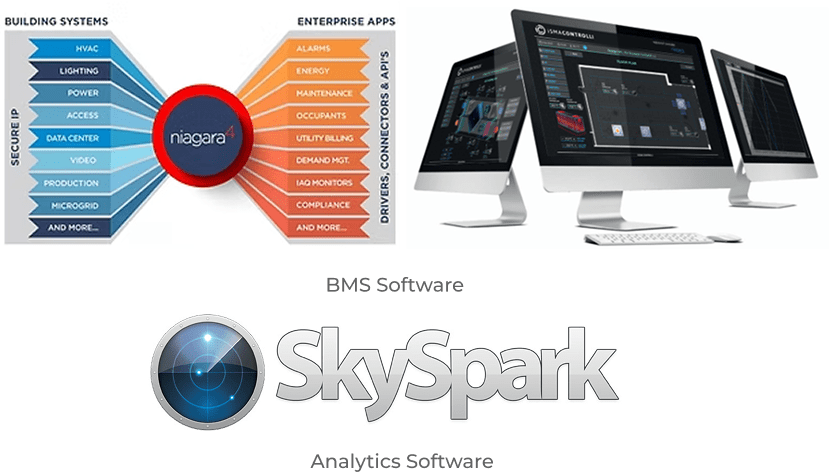

Multi-site Building Management

• One data model common to Niagara 4
• Ability to leverage Niagara 4 tagging and hierarchies
• Algorithm library with examples for BAS and energy
• BACnet® server for integration with almost any building automation system
• Scalable from 2-10000 doors
• Unified graphical tool set for all connected building systems
• BACnet® server for integration with almost any building automation system
• Scalable from 2-10000 doors
• Robust, distributed architecture
• Single tool used to program MAC, JACE, Niagara Edge controllers and the Supervisor
• Remote backup of MAC, JACE, and Edge applications to the Supervisor
• Batch provisioning of MAC, JACE, and Edge firmware upgrades, security credentials, applications, and commissioning options from the Supervisor
• Eligible for accreditation under the Federal Risk Management Framework (RMF)

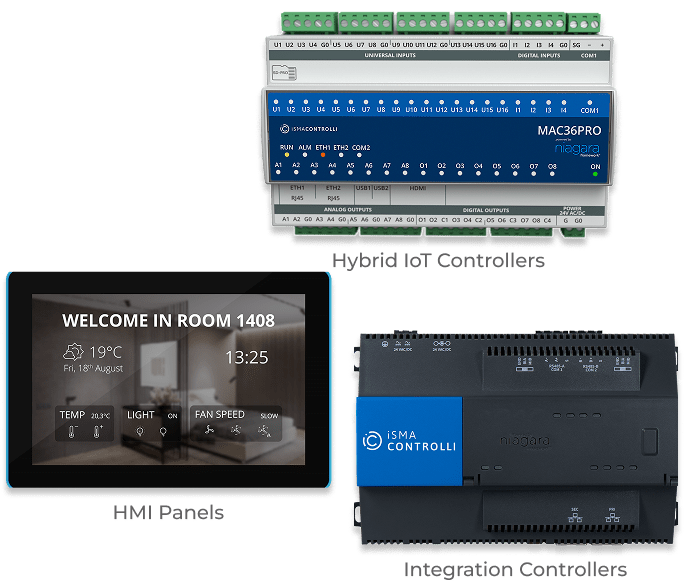

Small & Medium BMS – MAC36NL

• Real-time programming
• 16 UI, 8 AO, 4 DI, and 8 DO
• HDMI to connect an external display
• Built-in web server provides graphical user interface available from a web browser level
• BTL certifi ed – listed as BACnet Building Controller (B-BC)

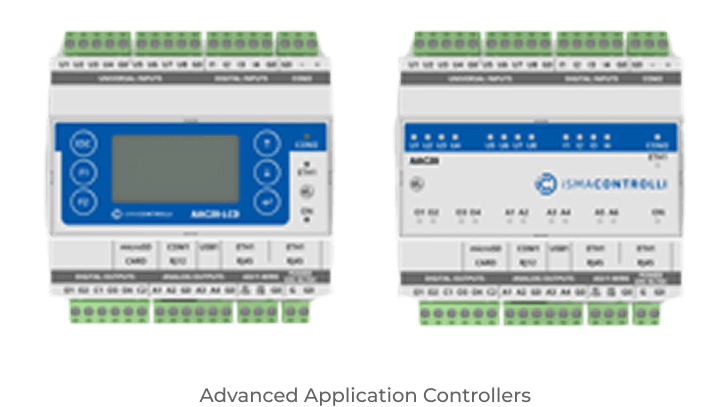

HVAC & Plant Control – AAC20

• Sedona Framework 1.2 support
• Real-time clock (RTC)
• 2 Fast Ethernet with built-in switch
• RS485 port (Modbus or BACnet)
• Built-in LCD display (option)
• Micro SD card slot to log historical data and alarms
• Fast processor with ARM dual core 204 MHz
• Built-in Modbus gateway TCP/IP to RS485
• DALI interface: built-in power supply (option)
• M-Bus interface: up to 20 devices (option)
• iC Tool – free of charge programming soft
• Confi guration via web
• Built-in visualization web server

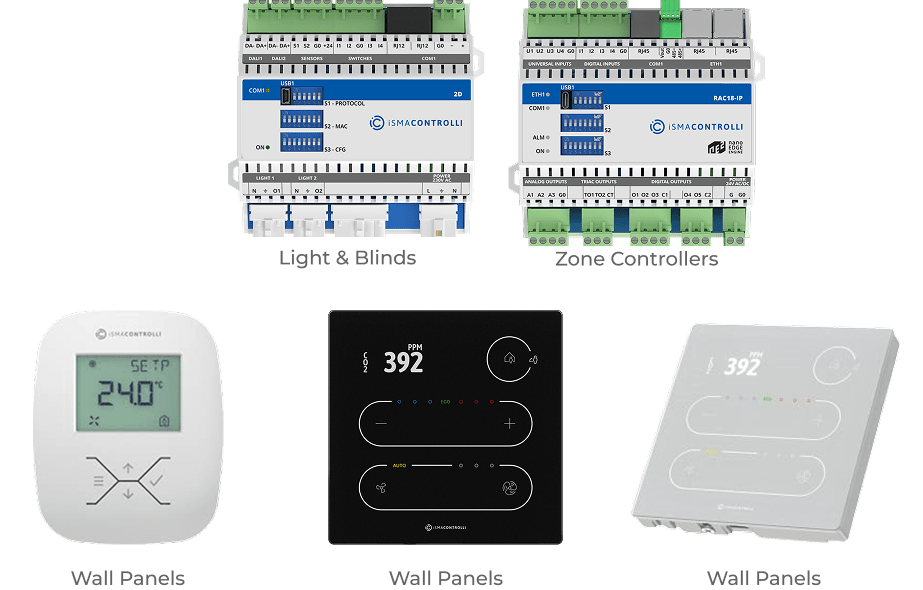

Comfort Management – RAC18-IP

• 150 Data Points
• System and applications on SD card
• 2 fail-safe Ethernet ports with a built-in switch
• Native BACnet IP and Modbus TCP/IP
• Modbus RTU
• Built-in real-time clock (RTC)
• Support for over 20 types of temperature sensors
• Triac outputs for thermal actuators
• UL listed for U.S. and Canada according to UL 60730-1 and CAN/CSA E 60730-1

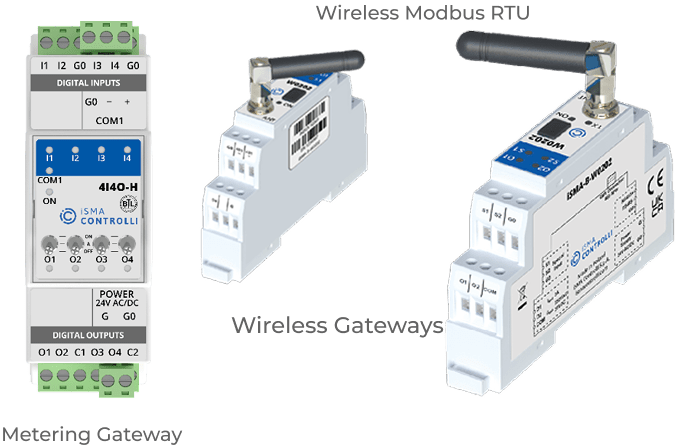

Gateways

M-Bus TCP/IP to M-Bus gateway
• M-Bus UPD/IP to M-Bus gateway
• Modbus TCP/IP to Modbus RTU/ASCII gateway
• Built-in power supply for up to 60 M-Bus meters (up to 130 mA)
• Mini USB allows for powering the device and simplifies the configuration and updates
• RS485 port (Modbus)
• LEDs indicating the state of SI and DO
• Fast processor with ARM core
• 2 special inputs: voltage, resistance, dry contact, and fast counter up to 100 Hz save in EEPROM
• 2 digital outputs: relay, max. 3 A, 230 V AC/ 30 V DC

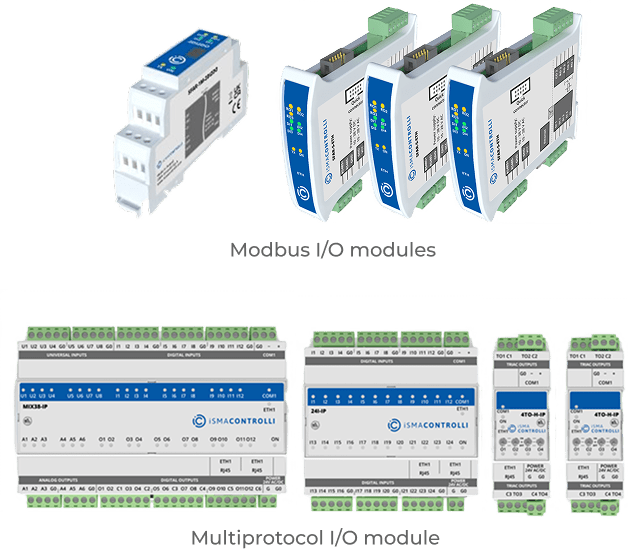

I/O Modules – MIX18 & MIX38

• Mix of all I/O types
• BACnet MS/TP, BACnet Slave, and Modbus RTU/ASCII, selected with a DIP switch
• RS485 communication port, half-duplex
• Digital inputs work as fast counters up to 100 Hz
• Digital outputs 230 V AC max. 3 A allow for a direct control without additional relays
• Analog outputs with max. 20 mA load per channel (60 mA maximum total load) allow for a direct control of relays (12 V DC) or SSR with PWM support
• LEDs indicate the status of inputs and outputs
• Simple and fast addressing from 0 to 99 using rotary switches
• UL listed & BTL certified
• More: MIX18-IP & MIX38-IP

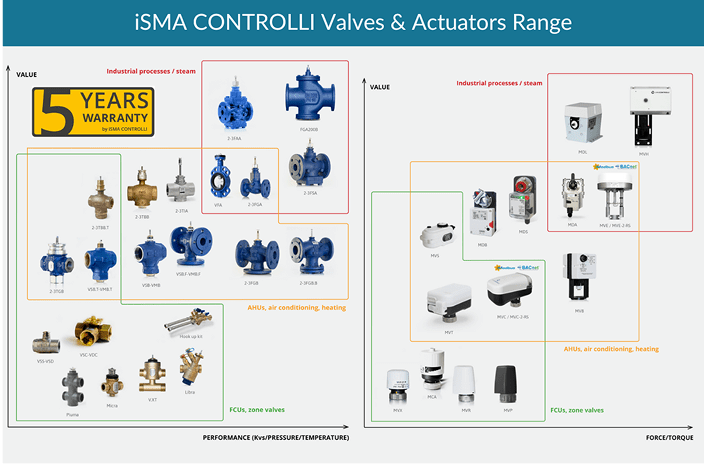

Valves

• For room, zone, HVAC, and industrial processes with a perfectly matched range of analog, network, and smart actuators.
• Reduce energy, installation and maintenance costs with a wide range of valves and actuators.
• Product applications range from zone and FCU control through air handling units and HVAC to industrial processes.

BASIC SUPPORTED PROTOCOLS

FEATURED PROJECTS

ABOUT TINDATCONTROLS

“The journey to becoming a strategic partner of global brands.”

Tin Dat Automation Engineering Co., Ltd., established in 2008, is one of the leading providers of solutions and equipment in the fields of building automation, fire alarm systems, and security systems. We offer comprehensive solutions and equipment—from consulting and design to maintenance services—ensuring performance and value for projects such as office buildings, residential complexes, hotels, and hospitals. Our solutions utilize products from world-leading manufacturers while still maintaining cost-effective investment levels.

Officially became the authorized distributor of iSMA CONTROLLI

In August 2024, TINDATCONTROLS officially became the authorized distributor of MAPLE ARMOR (fire alarm systems) and iSMA CONTROLLI (BMS and electric valves) in the Vietnamese market.
